HARVESTING TIME



CHASER BIN

Customize your own chaser bin

The AgriCAD chaserbin range offers the farmer an affordable, reliable and professionally engineered solution for bulk in-field grain handling.

Specifically developed for the Grain Farmer our chaser bins offer the following practical advantages:

  • Unique auger design
  • Hydraulic bottom dump
  • Modular design that makes welded assemblies replaceable
  • TF16C – 16 000 L, ± 13 tons, ± 5t/m discharge rate (SG± 0,832)
  • TF24C – 24 000 L, ± 20 tons, ± 5t/m discharge rate (SG± 0,832)
  • TF27C – 27 000 L, ± 22 tons, ± 5t/m discharge rate (SG± 0,832)
  • TF34C – 34 000 L, ± 28 tons,



BULK TRAILER RANGE

undefined

The AgriCAD RT270 multi-purpose low speed bottom dump mass trailer present the farmer with an affordable solution for the challenges of handling bulk loads of grain during harvesting. The removable sides offer the opportunity to convert into a flat deck trailer configuration during the off season for multi-purpose use. The hydraulic braking system guarantees safe transportation of a 22.5 ton load over longer distances. The bigger carry capacity of 22.5 ton versus the more traditional 8 to 16 ton trailers optimizes the cost per ton ratio by as much as 200%. The load distribution transfer as much as 2.5 ton onto the tractor draw bar which in turn optimizes the traction and manageability in the field.

Specifically designed for Africa’s conditions to optimize the outputs required by the continent’s farmers the RT270 multi-purpose trailer offers the following practical advantages:



  • Hydraulic braking system that safely and effectively negotiate the 27 ton trailer. (GVM)
  • Hydraulic braking system that safely and effectively negotiate the 27 ton trailer. (GVM)
  • Easily removable upper structure for configuration as a flat deck trailer
  • The sluices and landing leg are hydraulically  operated by the tractor driver from the cabin
  • 22.5 ton payload
  • Modular design enhances the replacement of the welded components
  • Optimizes driver productivity as one driver handles as much as double the amount of grain without disembarking the tractor



MOTHERBIN RANGE

undefined

The AgriCAD MB80C Mother bin present the farmer an affordable solution for the challenges of handling bulk loads of grain during harvesting. Farm load contract becomes an executable option with a 66 ton buffer capacity. Grain can now easily be harvested in to the Mother bin in order to load trucks and trailers at a high discharge rate.

The AgriCAD electronic weigh system with its printer optimizes effective control to prevent grain theft and improve book keeping. The Mother bin is easily moveable and has a narrow turning circle, and are custom made to be moved by one person in minutes.

The protective tarpaulin also operates in an easy and quick manner.

Specifically designed for unique agriculture conditions the MB80C incorporate the following practical advantages:

  • 34 Ton truck to be loaded in approximately 10 minutes
  • The 80 000 litre capacity create a 66 ton buffer facility (SG± 0,832)
    SG obtained as published in 2017/18 SAGL report
  • 4.2 m standard discharge height
  • Modular design enhances the replacement of the welded components
  • LED light box with chevron as standard
  • LED flood light on discharge auger head optimizes night loading
  • Tarpaulin for protection against elements
  • Optional weigh system with printer



COMBINE HARVESTER HEADER CART

Easing transportation

The AgriCAD heavy duty combine harvester header carts give the farmer a safe and easy alternative to move the table between the fields. Keeping the Southern African farmers needs in mind, the table carts have been designed with the following practical benefits:

  • Design to handle table of up to 4.5 ton/27’ beam (TC900 & 909) and 5.5 tons/38’ (TC 911)
  • Low loading height to make hitching easier
  • Standard light box with chevron
  • Steering mechanism to enhance the turning radius of the cart
  • Adjustable resting supports on the cart
  • Linear adjustable settings of brackets on the main beam



GRAIN CLEANER

undefined



The AgriCAD GC120 is a 380 V static unit designed for the farmer who operates his own silo operation. It offers an affordable means to optimize his sifting in order to achieve a better grading for his grain.

The drum speed is electronically adjustable as is the sifting angle. Sieves can be adapted to meet the requirements of the client.

The capacity is 120 ton/hour for larger material (standard cleaning/sculping) and 60 ton/hour for smaller impurities (fine screening) like oil seed, ext.



PREPARATION TIME



DEEP RIPPER RANGE

undefined

Rip deep

AgriCAD developed the ripper to fulfill the needs of the farmers that subscribe to a practice of deep soil preparation.  With an effective working depth of 800 mm most of the challenges associated with deep ripping are solved.

Implement characteristics:

  • True 800 mm working depth
  • Tines require 50 kW per tine at the maximum working depth
  • Maximum work width of the 8 tine ripper is 6 m
  • Ground clearance of the beam is 600 mm at maximum working depth
  • Ground clearance of the tines is 200 mm when moved between fields

In addition to normal ripping the implement can be adapted for granular fertilizer application with the addition of a towed fertilizer bin.  The ripper can also be fitted with a RTK steering system.



TANDEM RANGE

Affordable soil preparation

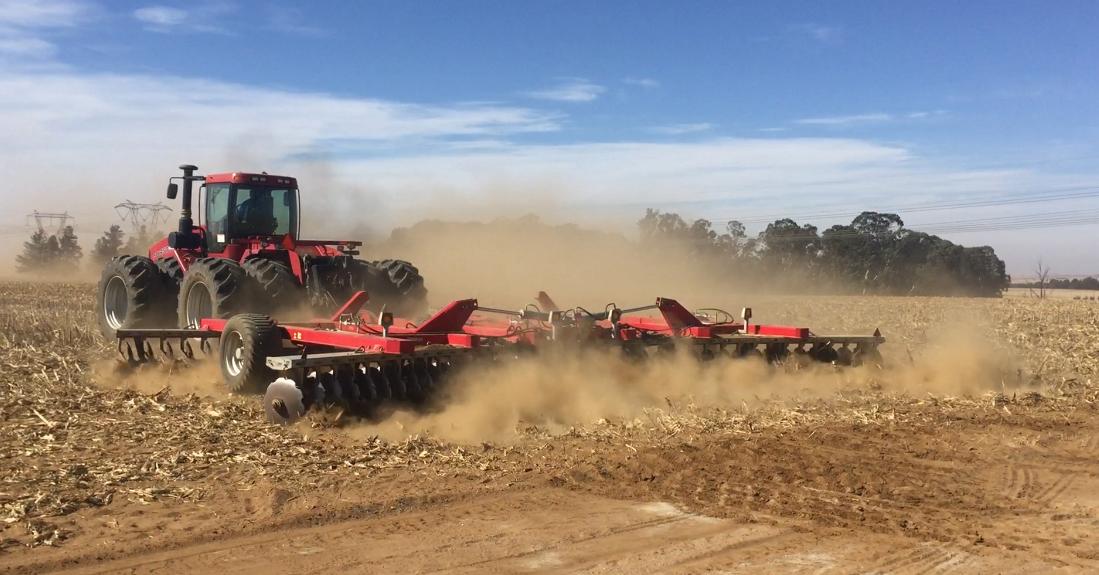

The AgriCAD heavy duty tandem dis range offers the farmer an affordable soil preparation solution. Specifically developed for Africa’s conditions, AgriCAD offers a range from 52 to 96 discs with the following advantages:

  • Modular design that makes welded assemblies replaceable
  • Replaceable, adjustable scrapers
  • Pressure per disc can easily be increased from 110 kg to 130 kg per disc
  • Triple sealed heavy duty oil or grease bearings
  • 28 inch, 8 mm, heavy duty discs
  • Hydraulic lifting wheels
  • 400/60 R22.5 Agri Super Singles for easy road transport
  • Mechanical lockpin on wings for safer transport
  • Wings can float between -5° to 20° to adapt to contours
  • No ridge left, uniform seed bed
  • 45 mm round disc-axles
  • AgriCAD lock mechanism on disc-axles



RIPPER RANGE

undefined

Rip with peace of mind

Operational advantages

  • 2 or 3 beam option
  • Straight or curved tines
  • 16-20kW / tine needed
  • Bolt on shear
  • 450 mm working depth
  • Tines are segmented
  • Fuel saving due to tine design
  • Springs are marked leader standard
  • Roller an optional extra



Maintenance advantages

  • Maintenance cost and down time reduced – only replaced the damaged part and not the whole tine
  • Tine replacement about 30% less than competitors



OFF SET RANGE

Affordable soil preparation

The AgriCAD heavy duty offset harrow range offers the farmer an affordable soil preparation solution. Specifically developed for Africa’s conditions.

AgriCAD offers a range from 18 to 52 discs with the following advantages:

  • Modular design that makes welded assemblies replaceable
  • Modular design that makes welded assemblies replaceable
  • Replaceable, adjustable scrapers
  • Pressure per disc can easily be increased from 95 kg to 120 kg per disc
  • Triple sealed heavy duty oil or grease bearings
  • 28 inch, 8 mm, heavy duty discs
  • Hydraulic lifting wheels
  • Adjustable cutting angles



PLANTING TIME



LANDROLLER RANGE

Increase your harvest



AgriCAD is the undisputed market leader with their landroller series.  There are four available models with widths of 7.6 m, 9.4 m, 11.3 m and 12.2 m to correlate with the planting width practice of the farmer.

 Benefits when you roll:

     AFTER planting:

  • Increase yield due to ability to harvest closer to ground
  • Fewer breakages during harvesting (less soil, stones and lose impediments damaging the table)
  • Quicker disintegration of mealie residue
  • Moisture retention are increased

      PRIOR TO planting:

  • The above mentioned four advantages
  • Reduced wear and tear on planter, self-propelled sprayer and harvester
  • Improved seed germination due to seed soil contact
  • Level seedbeds
  • CONSTANT PLANT DEPTH





FERTILIZER CHASER BIN RANGE

Reduce waiting and down time

The AgriCAD fertilizer chaser bin presents the farmer with an affordable handling solution. Specifically developed to cater for the South African farmer’s needs. Available in 7, 10 and 15 ton.

The BF073, BF105 and BF150 offer the following practical advantages:

  • Loading mechanism to load mass as well as settled fertilizer easier and faster
  • Drain/stop controlled by operator on draining pipe
  • Maximum adjustable draining speed of 1 ton per minute for total control
  • Modular design that makes maintenance and replacement easy and affordable
  • 300 kg lockable seed box (BF073, BF105 & BF150)
  • Standard roll up tarp for protection against elements
  • 7 000/10 500/15 000 litre capacity to handle 7/10.5/15 ton fertilizer per load
  • Optional mechanical loadbins of 500 kg (BF073) and 1 ton (BF105 & BF150 ) respectively



SEED TREATER

Seed treating made easy

 AgriCAD’s electronic operated seed treater makes the seed treating process a breeze.

Two models are available; the ST300 is a stand-alone implement that can single-handedly be moved around whilst the ST06P is design to be used with the “pro box” crates and is set on a frame.

 Characteristics

  • 6 ton/h capacity
  • Wet and dry application
  • Simple calibration
  • 3 sets of pipes for optimal inoculant application
  • Easy transportation and operation



PROBOX® BULK SEED CART

Convenient seed handling

The PS04P seed cart is an innovative product that reduces the pressure during planting time and reduces risk. The cart carries 4 one ton crates at a time and the refilling of the planter is much more efficient.

Advantages of using the seed cart:

  • Reduction in the theft
  • Labour reduction
  • Time saving due to manageability of the crates
  • Protection against the elements
  • Protection against
  • Protection of seed due to reduces and delicate handling

Cart characteristics:



  • Carries 4 one ton crates
  • Variable and controllable discharge rate up to 225 kg/min
  • Tractor size: 60+ kW
  • Adjustable telescopic discharge pipe
  • Easy maintenance



FERTILIZER APPLICATOR RANGE

Reduce risk during planting

Applicators have a proven track record in USA, Canada and Europe.  The AgriCAD applicator is the first locally built machine with the bulk of the components locally produced. Down time is reduced significantly.  Farmers are impressed with the risk reduction in their planting operations and the optimization of their planting practice.

With minor adaptations the implement can also be used to do foliar nutrition, weed and pest control.

Benefits:

  • Precision application through the use of RTK
  • Risk reduction – total fertilizer spread over time as season develop

                           – pre planting

                           – inter row application (top up)

  • More effective inter row application than broad spreading of granular fertilizer
  • Pre planting application reduces the stresses and pressure during planting time with an associated reduction in mistakes and therefore a cost saving
  • Smaller tractor can be used resulting in cost saving on capital
  • Reduced refilling waiting periods cumulate in more hectares being planted per day

Implement characteristics:

  • 7000 liter capacity ( 2 x 3500 litre tanks)
  • Hydraulic adjustable wheels (on certain models)
  • Adjustable application width
  • 50 liter water tank
  • 40 liter/min oil flow required
  • RTK functionality
  • Differential application
  • Available models; 6, 8, 12, 16 or 24 rows with 2.5” or 3” spacing



ALL THE TIME



PARAPLOUGH

Effective Aeration

The AgriCAD Paraplough is used to effect aeration in the field with minimal disturbance of the soil profile.  The AgriCAD Paraplough is used to effect aeration in the field with minimal disturbance of the soil profile.  It’s speed of operation cumulate in substantial hectares covered per day.

Models: RVT11, 11 tine (5m working width)

Implement characteristics:

• Working depth up to 450 mm

• Require 20 kW per tine



FEEDER CART

Make feed cartage a breeze

The AgriCAD feed cart was developed for farmers that operate their own feedlots for quarantined reasons and need to transfer feed into feeding silos. It is very popular amongst farmers in Africa.

The cart can be adjusted to place fed in feed trenches.

Characteristics:

  • 12 000 litre/ 8.5 ton capacity
  • Variable discharge rate up to 500 kg/min
  • Auger have a reach of 9.5 m (min of 6.5 m)
  • Tractor size: 60+ kW
  • Hydraulic operated stabilizing legs
  • Tarpaulin standard
  • Grit standard
  • Weigh system optional
